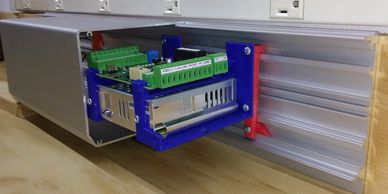

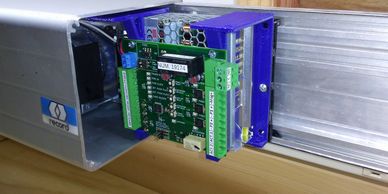

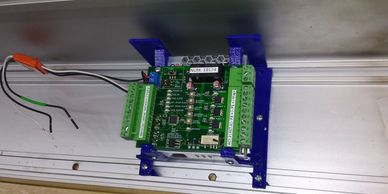

The Swinger-90W are a microprocessor control with a 24VDC 90 watt power supply. This control combines functions commonly found on automatic/security doors. It's compact size enables it to be installed inside most automatic door header case. Eliminating the need to run control wires to a remote mounted box.

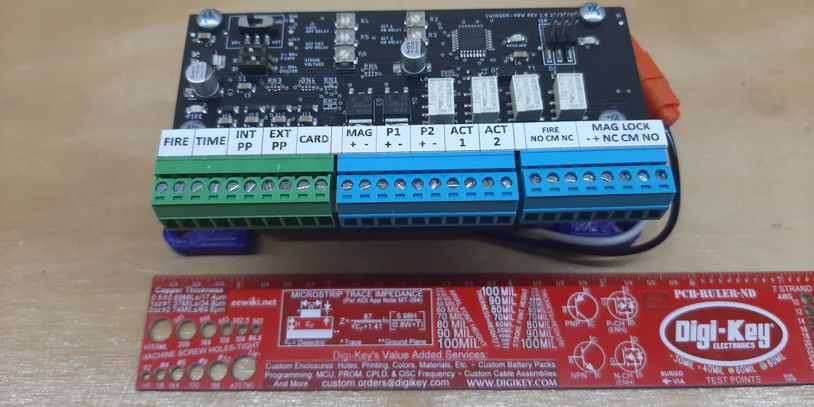

Inputs:
- Fire System input, Both dry or 24 VDC types
- Internal Push Plate/Sensor
- External Push Plate/Sensor. This is disabled till a valid card or time clock input.
- Card Reader
Outputs:
- 24VDC Output for 2 Panic Bars
- 24VDC for Magnetic/Strike Locks, after 5 seconds, this can be adjusted to a lower voltage to prevent strikes from getting hot.
- Constant 24VDC and a relay contact for delay egress mag locks.
- 2 Relay Outputs for Automatic Door Control Activation
With a compact size of 5.5" W x 3" D x 2" H. It is to be used with motorized panics, such as, VD QEL, Sargent, Detex and retrofit kits from SDC and Command Access. If you need to power any solenoid type panic. Then look at the Swinger-350W. Click here.
Common applications:
Door on a time schedule:
Daytime- Door is unlocked, Both sensors/push plates will open the door. Night time- Door is locked, Interior sensor/push plate will open the door. Exterior sensor/push plate is disabled. Card reader will unlock door and enable outside sensor/push place.
Fire door with panics dogged and magnetic locks on a time schedule:
Daytime- Door is unlocked, Both sensors/push plates will open the door. Night time- Door is locked, Interior sensor/push plate will open the door. Exterior sensor/push plate is disabled. Card reader will unlock door and enable outside sensor/push place.
On fire alarm, panics will latch, magnetic locks will unlock, both interior and exterior sensors/push plates are disabled.
Installation manual can be found Here
MSRP $ 540.00
Call/email for dealer pricing.
